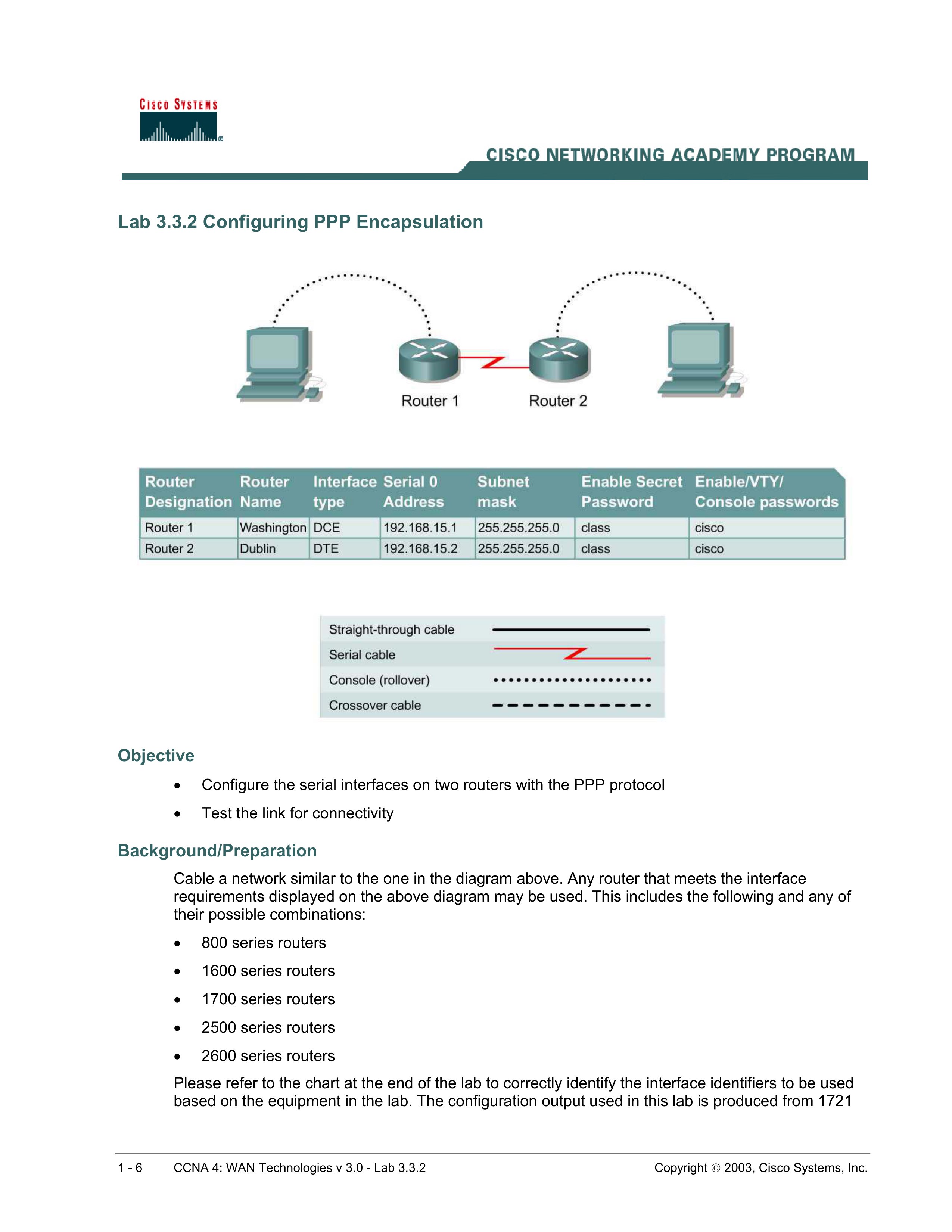

Lab 3.3.2 Configuring PPP Encapsulation
Objective
• Configure the serial interfaces on two routers with the PPP protocol
• Test the link for connectivity
Background/Preparation
Cable a network similar to the one in the diagram above. Any router that meets the interface
requirements displayed on the above diagram may be used. This includes the following and any of
their possible combinations:
• 800 series routers
• 1600 series routers
• 1700 series routers
• 2500 series routers
• 2600 series routers
Please refer to the chart at the end of the lab to correctly identify the interface identifiers to be used
based on the equipment in the lab. The configuration output used in this lab is produced from 1721
1 - 6 CCNA 4: WAN Technologies v 3.0 - Lab 3.3.2 Copyright 2003, Cisco Systems, Inc.
